PM 1: Project Initialization

  PM1 - Projektinitialisierung

Contents
  • Product Flow
  • Handling
  • Roles
  • Sub-activities
    		•
  • Tools Requirements
  • External Norms
  • Links to the V-Model Mailinglist

    • Product Flow

    From Product to Methods Tool Req. Ext. Norms
    Activity State Chapter Title Activity State
    External - All V-Model - -
    External - All Project Order - -
    - - All Project Manual PM2 ,
    PM3
    PM4
    PM8
    PM10
    PM11
    PM12
    CM1
    CM4
    QA1    		 submitted OGC
    PM7 being proc. Existing Project Plan PM3
    PM4
    PM6
    PM7
    PM8
    PM10
    PM11
    PM12
    CM1
    CM4
    QA1    		 being proc. (1) BAR
    EMOD
    FMEA (2)
    NPT
    TREE

    + "Chapter" are extra columns from the original printed version of GD 250

    Handling

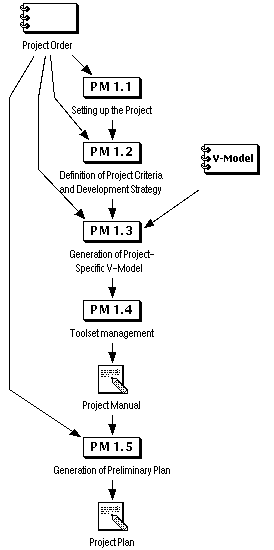

    Figure 7.2

    Figure 7.2: PM1 - Project Initialization

    The initialization is the first activity when handling a project. It is to define the organizational framework in the Project Manual. The modalities of the project-internal cooperation as well as the modalities of the interface to external participants have to be defined.

    Project criteria and marginal conditions have to be established for the Project Manual; the tailoring of the V-Model must be realized on the basis of these criteria and conditions. The result of the tailoring is the Project-Specific V-Model, which is part of the Project Manual.

    Within the Project Plan it is necessary to set up preliminary planning which is based on the Project Manual and possibly available Project Histories; this preliminary planning should contain a first estimation of the efforts, deadlines and staff planning until the end of the project.

    Furthermore, the project management has to select and make available a development environment specially tailored for the project.

    Roles

    Role Participation
    CM Manager advising (PM1.1)
    IT Representative advising (PM1.2, PM1.4)
    Project Administrator cooperating (PM1.1, PM1.2, PM1.3, PM1.4, PM1.5)
    Project Leader responsible (PM1.1, PM1.2, PM1.3, PM1.4, PM1.5)
    Project Manager advising (PM1.1)
    Q Manager advising (PM1.1)
    QA Manager advising (PM1.2
    cooperating (PM1.3)
    SD Supervisor cooperating (PM1.4)

    Sub-activities

    PM1.1 - Setting up the Project
    PM1.2 - Definition of Project Criteria and Development Strategy
    PM1.3 - Generation of Project-Specific V-Model
    PM1.4 - Toolset Management
    PM1.5 - Generation of Preliminary Plan

    Tools Requirements

    Being defined

    External Norms

    Being defined

    Links to the V-Model Mailinglist

    Mail 0503 - KM- und QS-Initialisierung (503)
    Mail 0240 - Re: PM Auftragnehmer (240)
    Mail 0235 - PM Auftragnehmer (235)

    Note:

    (1) The state "b. proc." merely reflects the CM aspect. The authorization of the Project Plan by the project management responsible is nevertheless required, possibly with the participation of the QA representative.

    (2) Method FMEA is to be applied if
    - high restrictive planned values (deadlines, costs) or
    - high requirements
    have to be fulfilled in the project.
