| CM 4: CM Services |
 Contents
|
|
|
|---|
Product Flow
- Not applicable -(There is no connection concerning content or time sequence of the individual CM services.)
Handling

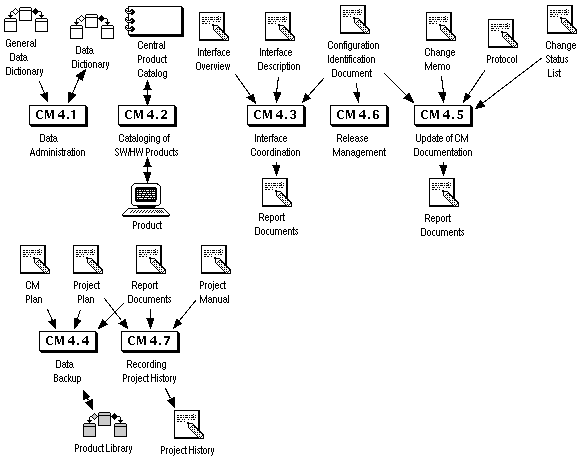

Figure 6.7: CM4 - CM Services
Among the CM services are all those activities of the CM that have to be realized as project services at intervals, when required, or at instigation.
This includes the following activities:
- CM4.1 - Data Administration, which has the goal of setting up a central or company-wide data dictionary with consistent, uniform data definitions,
- CM4.2 - Cataloging of SW/HW Products, which wants to make it possible to reuse products,
- CM4.3 - Interface Coordination, which has the goal of maintaining interfaces compatible and of preventing technical interfaces that were changed one-sidedly,
- CM4.4 - Data Backup, which has the goal of maintaining the achieved project status,
- CM4.5 - Update of CM Documentation, for the generation of detailed reports and overviews of various CM topics,
- CM4.6 - Release Management, for the controlled release and distribution of configurations,
- CM4.7 - Recording Project History, which has the goal of generating a comprehensive, reconstructable documentation for the entire project.
Roles
| Role | Participation | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CM Administrator | cooperating (CM4.3,
CM4.6)
| CM Administrator |
responsible (CM4.2,
CM4.4,
CM4.5)
| CM Representative |
responsible (CM4.3,
CM4.6,
CM4.7)
| Data Administrator |
responsible (CM4.1)
| Project Leader |
cooperating (CM4.6)
| System Administrator |
cooperating (CM4.6)
| |
Sub-activities
CM4.1 - Data Administration CM4.2 - Cataloging of SW/HW Products
CM4.3 - Interface Coordination
CM4.4 - Data Backup
CM4.5 - Update of CM Documentation
CM4.6 - Release Management
CM4.7 - Recording Project History
|
|
|
