RE 2: Realization of Software-Related Improvements

  RE2 - Durchführung softwaretechnischer Verbesserungen

Contents		Product Flow Handling Explanation Sub-activities

Product Flow

From		Product		to
Activity	State	Chapter	Title	Activity	State
External (1)	-	All	Available source code	-	-
RE1	accepted	All	User Demand	-	-
-	-	All	Case Report "Measuring the Source Code"	RE8 External (1)	submitted
-	-	All	Implementation Document: SW Modules	RE3 RE5	being proc.
-	-	All	SW Module (2)
-	-	All	Implementation Document: Database
-	-	All	Database (2)

Handling

(start daVinci Graph Visualization Tool v2.0)

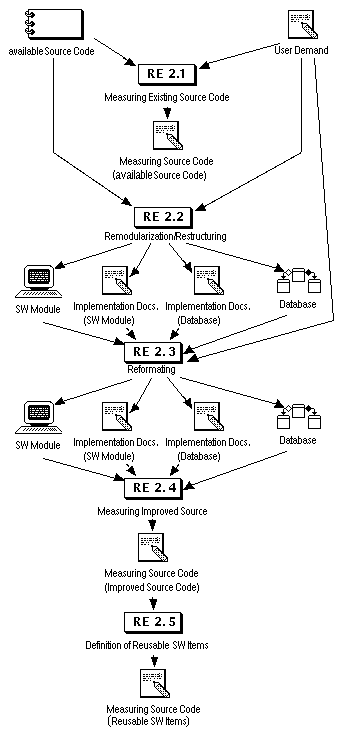

Figure RE 2: Realization of Software-Related Improvements

In this activity, software-related improvements to the existing/available source code is realized on the basis of subproduct User Demand.Possible Solutions. In this connection, the improvements may include the sequence and data structures as well as the layout. Before and after the realization of improvements, the source code is measured by means of software measures in order to prove the success of the realized improvements. Implementation Documents (SW Modules and Databases) are generated for the modified, improved code. On top of that, and on the basis of the measurement results, all those SW items will be specified that are to be reused or correspondingly redeveloped in a subsequent forward engineering measure.

Explanation

Sub-activities

(1)   Customer

(2)   Improved code.
