RE 5: Mapping the User-Level View to the Technical View

  RE5 - Abbildung der fachlichen auf die technische Sicht

Contents
  • Product Flow
  • Handling
  • Sub-activities

    • Product Flow

    From Product to
    Activity State Chapter Title Activity State
    RE2 being proc. All Implementation Document: SW Module RE6
    External (1)    		 submitted
    All SW Module
    All Implementation Document: Database
    All Database
    RE3 being proc. All System Architecture External (1) submitted
    RE3 being proc. All Software Architecture External (1) submitted
    RE3 being proc. All SW Design: Module
    SW Design: Database     		External (1) submitted
    RE4 accepted All Data-Dictionary - -
    RE4 accepted All User Requirements - -

    Handling

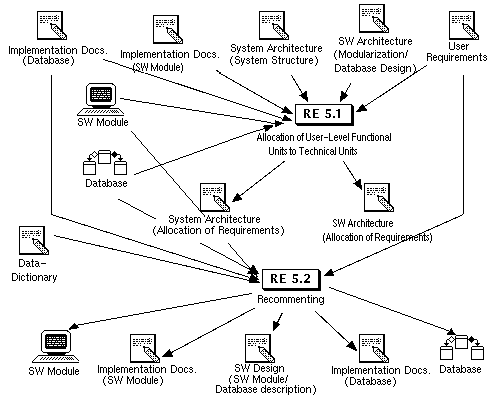

    Figure RE.5
    (start daVinci Graph Visualization Tool v2.0)

    Figure RE 5: Mapping the User-Level View to the Technical View

    This activity established the traceability of the requirements for system and SW Architecture and SW Design: Module / SW Design: Database . The source code is recommented according to user-level aspects.

    Sub-activities

    RE 5.1: Allocation of User-Level Functional Units to Technical Functional Units
    RE 5.2: Recommenting
    Note:

    (1)   Customer
