RE 7: System Integration

  RE7 - Systemintegration

Contents
  • Product Flow
  • Handling
  • Sub-activities

    • Product Flow

    From Product to
    Activity State Chapter Title Activity State
    External (1) - All HW Unit - -
    External (1) - All Non-IT portions - -
    RE3 accepted All Integration Plan - -
    RE3 being proc. All Operational Information:
    User Manual
    Diagnosis Manual
    Operator Manual
    Other Application Information    		 RE8
    External (1)    		 submitted
    RE6 accepted All Implementation Document: SW Unit - -
    RE6 accepted All SW Unit - -
    - - All System (installable) RE8
    External (1)    		 submitted

    Handling

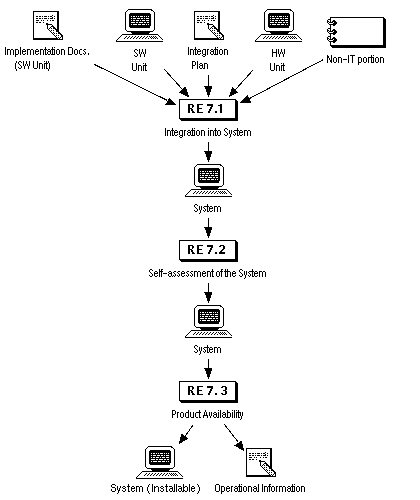

    Figure RE.7
    (start daVinci Graph Visualization Tool v2.0)

    Figure RE 7: System Integration

    The system is integrated in accordance with the regulations for SW Units, HW Units, and non-IT portions set up in the Integration Plan. It has to undergo a self-assessment, and is then available as installable System.

    Sub-activities

    RE 7.1: Integration into System
    RE 7.2: Self-Assessment of the System
    RE 7.3: Product Supply
    Note:

    (1)   Customer
